ORNL-, Rolls Royce-developed software creates virtual sandbox for gas turbine engine producers

During chemical vapor infiltration, gaseous vapor reacts on the surface of the preform fibers at elevated temperatures to coat the material. If applied long enough, the gas will eventually fill all the air pockets of the preform to make a solid component. New tools to model and simulate these processes can aid manufacturers of ceramic matrix composite materials.

New software capabilities developed by computational scientists at the US Department of Energy’s (DOE’s) Oak Ridge National Laboratory (ORNL) and the Rolls Royce Corporation could soon help engineers lift the gas turbine engines of aircraft and power plants to higher efficiencies.

Ceramic matrix composite (CMC) materials—tough, lightweight materials capable of withstanding high temperatures upwards of 2,000° F—are poised to replace metal alloy parts in the hottest zones of turbine engines, allowing for higher fuel efficiency and fewer emitted pollutants. Manufacturing CMC parts, however, has proven time consuming and expensive because of the complexities of creating advanced composite materials.

Lowering the cost of production through supercomputer-aided optimization of CMC manufacturing processes could help overcome these hurdles.

Using modeling and simulation, ORNL and Rolls Royce are developing tools to create a virtual sandbox for CMC manufacturers to test design parameters and identify strategies to make CMC production more reliable. Partnering through DOE’s High Performance Computing for Manufacturing (HPC4Mfg) program, the collaboration contributed to the first physics-based software focused on fine-tuning CMC manufacturing.

The software, known as Quilt, was initially developed at ORNL and enhanced under HPC4Mfg using computing resources at the Oak Ridge Leadership Computing Facility (OLCF), a DOE Office of Science User Facility at ORNL.

“CMCs represent a step-change technology for gas turbine engines, but, because it’s a new technology, the technique used to produce these parts is a very challenging process,” said ORNL computational scientist Ramanan Sankaran, lead code developer for the project. “By applying high-performance computing to this problem, we can get a better physical understanding of what’s happening during manufacturing and potentially identify strategies to speed up the process.”

The baker’s dilemma

Visualization of CMC densification depicting poor infiltration (blue) with internal voids. (Image credit: Ramanan Sankaran)

Pioneered by ORNL and others in the 90s, CMCs combine brittle components—silicon carbide (SiC) ceramic fibers arranged in a fabric-like weave—to create a surprisingly resilient material. The key to this strength lies in application of a common SiC precursor, methyltrichlorosilane, a gaseous vapor that flows through the fiber weave, or “preform.” The vapor reacts on the surface of SiC fibers at elevated temperatures to coat the material. If applied long enough, the gas will eventually fill all the air pockets of the preform to make a solid component.

The problem with this manufacturing technique, known as chemical vapor infiltration, is one familiar to any experienced baker whose goods are in high demand: How to uniformly “cook,” or densify, the CMC material from the inside out and in the minimum amount of time.

“If you fill up all the gaps in the outer layers of the ceramic fiber weave, you have pretty much sealed off the inside and you end up with a hollow product,” Sankaran said. “Within Quilt, we’ve developed the capability to predict the expected quality of a CMC sample based on a few major variables.”

Quilt uses direct numerical simulation of vapor flow and level-set modeling of the growing fiber surface to estimate how a CMC sample will densify based on the weave geometry.

Running the code on the OLCF compute cluster Eos, Sankaran and ORNL postdoctoral researcher Vimal Ramanuj simulated a model preform—a stack of woven ceramic fiber strips, called tows, 10 layers thick—with a spatial resolution of 600 million grid points.

Verified by experimental data supplied by Rolls Royce, Quilt successfully solved for the transport of the vapor through the weave and the rate at which the gas reacted with the surface of the preform.

“In the long term, this could be used for optimization of the weave pattern, which has an outsized effect on final product quality,” Sankaran said.

Manufacturing in silico

Traditionally, CMC optimization has been achieved through costly trial and error during preproduction. Quilt, which is slated to be released under open source licenses, offers CMC manufacturers a computational alternative to identify best practices based on variables such as how the layers of the preform are stacked, how much space lies between the layers, and how the rate of reaction between gas particles and preform affects vapor flow, with the possibility of adding new capabilities in the future.

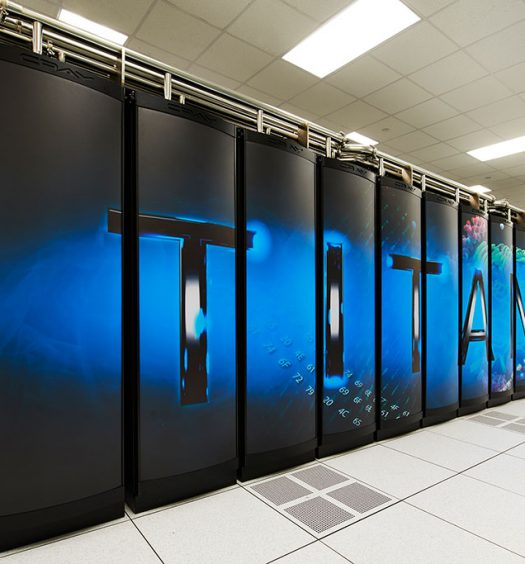

Based on the success of its initial work—resolving the CMC model down to the tow-scale—the team has begun pushing into even higher resolutions. In late 2018, Sankaran began work to resolve the team’s model down to the fiber-scale using the OLCF’s Cray XK7 Titan supercomputer. At this scale, each tow is modeled as a 50-fiber bundle and the spatial resolution is expanded to 10 billion grid points—more than 16 times the resolution of the tow-scale simulation. Under these conditions, the team can account for billions of gas-fiber interactions and can incorporate greater realism into its chemical reaction models.

“As we make progress on these fiber-scale simulations, we’ll start to see where they differ from the tow-scale,” Sankaran said. “This could lead to additional pathways for optimization.”

DOE’s Advanced Manufacturing Office, part of the Office of Energy Efficiency and Renewable Energy, funded this research through the HPC4Mfg program.
